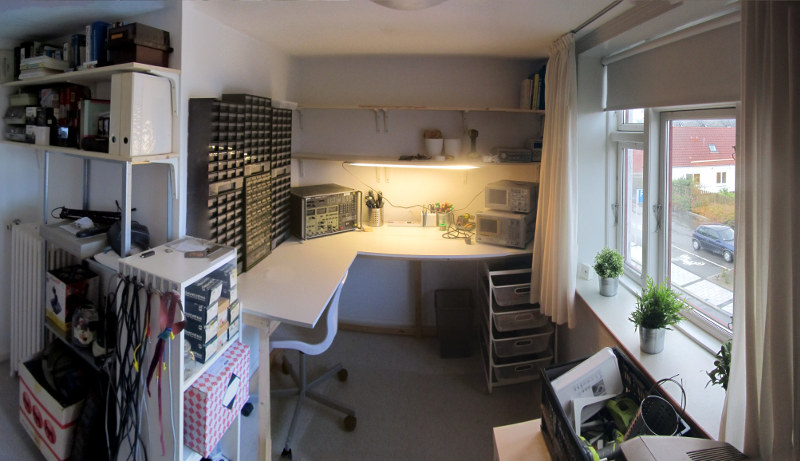

Untitled_Panorama1I have just converted one of the guest-rooms into my new electronics workshop. There is proper seating, loads of shelve-space, storage and room for my equipment. I have even got more power-points installed and swapped all the old fabric-covered house-wiring updated to proper double-insulated plastic cables.

The other half of the room is used for storage. I have installed eight IKEA HYLLIS metal shelving unit behind a curtain.

My current equipment includes:

Soldering station
Hot-air rework gun
Multimeters
LCR meter
Audio signal generator
100 MHz digital oscilloscope
6.5GHz spectrum analyzer
RF signal generator
RF measurement rig
High-end PC with CAD software.
Microchip PIC ICD2 and PICkit2
27Cxx EPROM Programmer
UV Eraser

Which I think is fairly OK for a hobbyists rig. In fact, throughout all my years as an electronics engineer in Asia, I have never had this must equipment available before.

My electronics lab – Before the new layout

In this video I do a small tour of my electronics lab.

My electronics lab – Rotary component storage

In this video, I build a rotary component storage unit using a lazy susan and drawer cabinets.

My electronics lab – Space-saving arrangement for soldering irons

In this video, I discuss a convenient way of placing the Weller soldering iron controllers.

My electronics lab – Convenient component storage

In this post, I show how to optimize the space in my electronics lab by utilizing the space under the windows.

My electronics lab – Build a 19 inch rack for 6 euro / $10

In this video, I build a sturdy 19″ rack for less than 6 euro.
