PZL-130 Orlik – Introduction

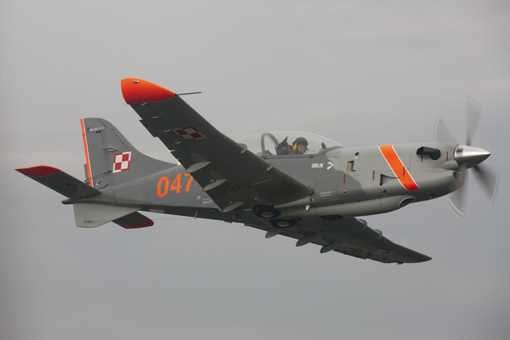

The PZL-130 Orlik is a two seat turbo-prop trainer used by the Polish Air Force. The Orlik is in the same class as the Pilatus trainers.

Specifications:

Crew: 2: student, instructor
Length: 9.30 m
Wingspan: 10.00 m
Height: 3.53 m
Empty weight: 1,825 kg
Loaded weight: 2,400 kg
Max takeoff weight: 2,950 kg
Engine: Pratt & Whitney Canada PT6A-25C turboprop, 750 hp
Maximum speed: 501 km/h
Range: 2,200 km

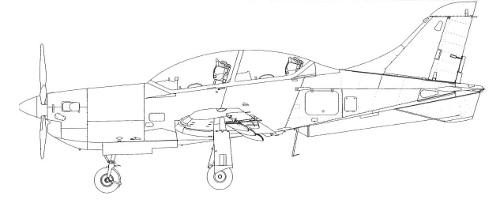

PZL-130 Orlik – 3-Views

I got the 3-views on my latest trip to Poland. They look very detailed and complete.

PZL-130 Orlik – Model

The model will be in scale 1:5, giving a model size of:

Wing span: 2.00 m
Length: m 1.86 m



PZL-130 Orlik – CAD Import

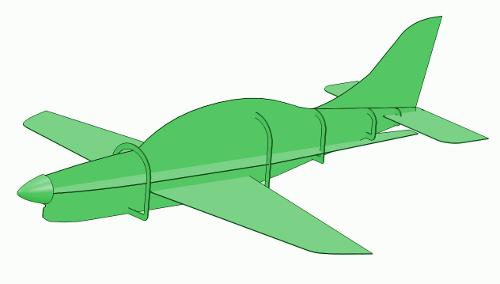

I started by importing the 3-views into Alibre CAD, and drawing the flat views. After that, I began drawing the fuselage formers.

For some reason, all the formers were drawn to different scales. I am used to cleaning up minor discrepancies on the 3-views I use, but this is extreme.
